DFPG-100
The DFPG-100 is a deterministic fiber polarization state generator that can be paired with an internal laser or a user's laser to generate a deterministically controllable output polarization. The internal laser is fully tunable over the 1550 nm C-band. A sequence of variable waveplates gives full control over the exit polarization. The waveplates are calibrated to compensate for changes in the laser wavelength. This gives a user the ability to change wavelength and polarization independently over the full operating range. The polarization can be programmed to step over a sequence of values, for instance switching between orthogonal polarizations or scrambling the polarization over the Poincaré sphere.
Basic Features
|
Product Specifications
| Attribute | Value | Units | Comments |
|---|---|---|---|
| Repeatability | ±2 | degrees | On Poincaré Sphere |
| Reconfiguration Time | 10 | ms | ±2 of final value |
| Optical Output Power | 10 | dBm | |
| Attenuation Range | 40 | dB | |
| Wavelength Range | 1528-1565 | nm | C-band; L-band (1570-1606 nm) also available |
| Waveplate Phase Control | 0−360 | degrees | <1˚ resolution |
| Form Factor | 2 | U | 2 U rack box standard 3.5" × 13" × 17" |

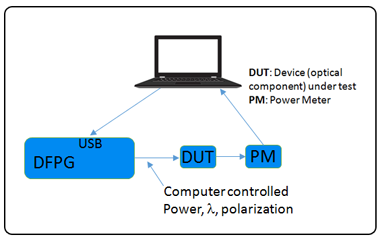

Typical Applications
|

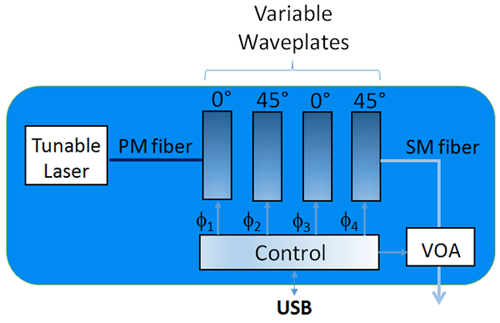

Product Diagram
 |
